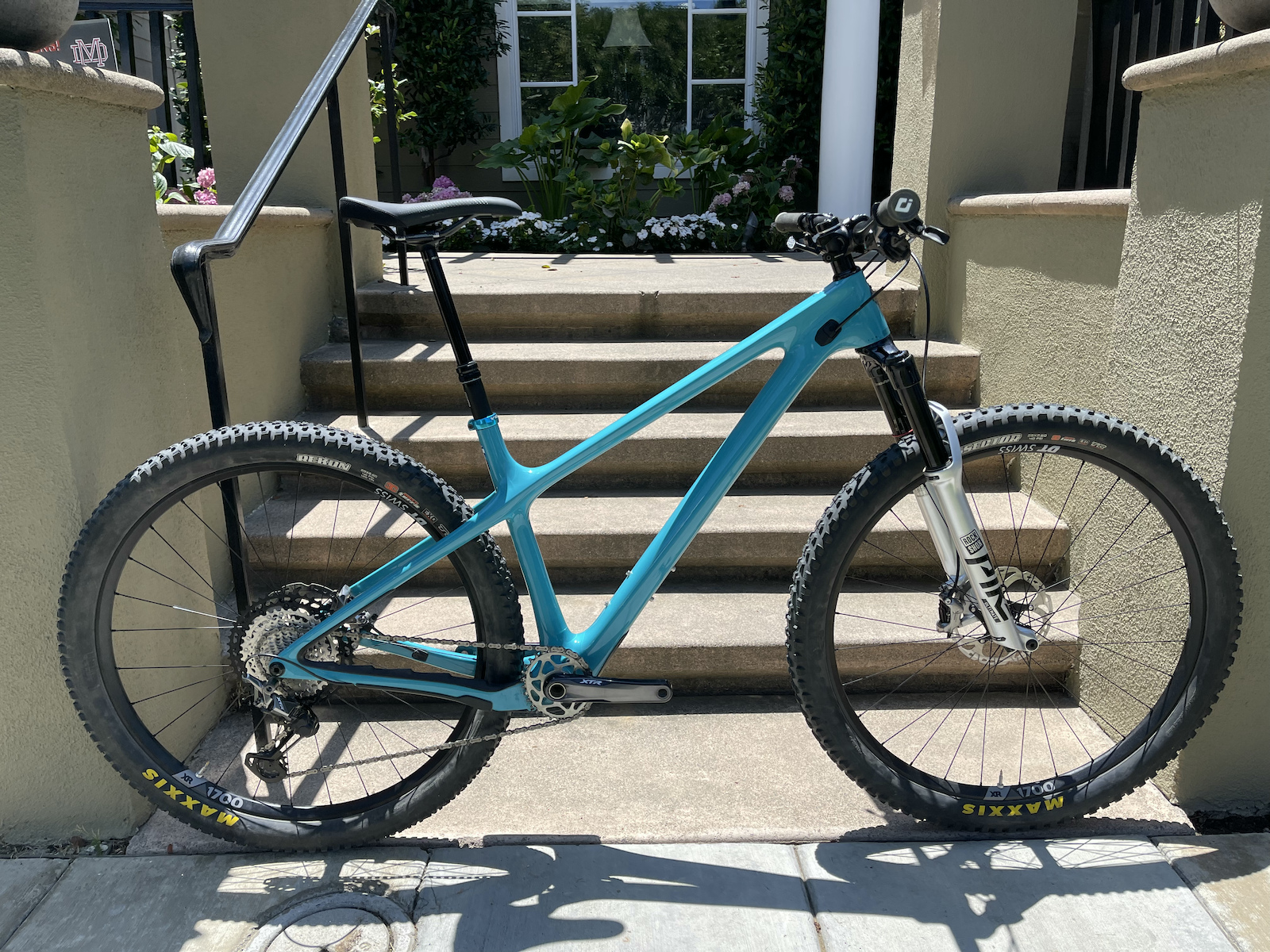

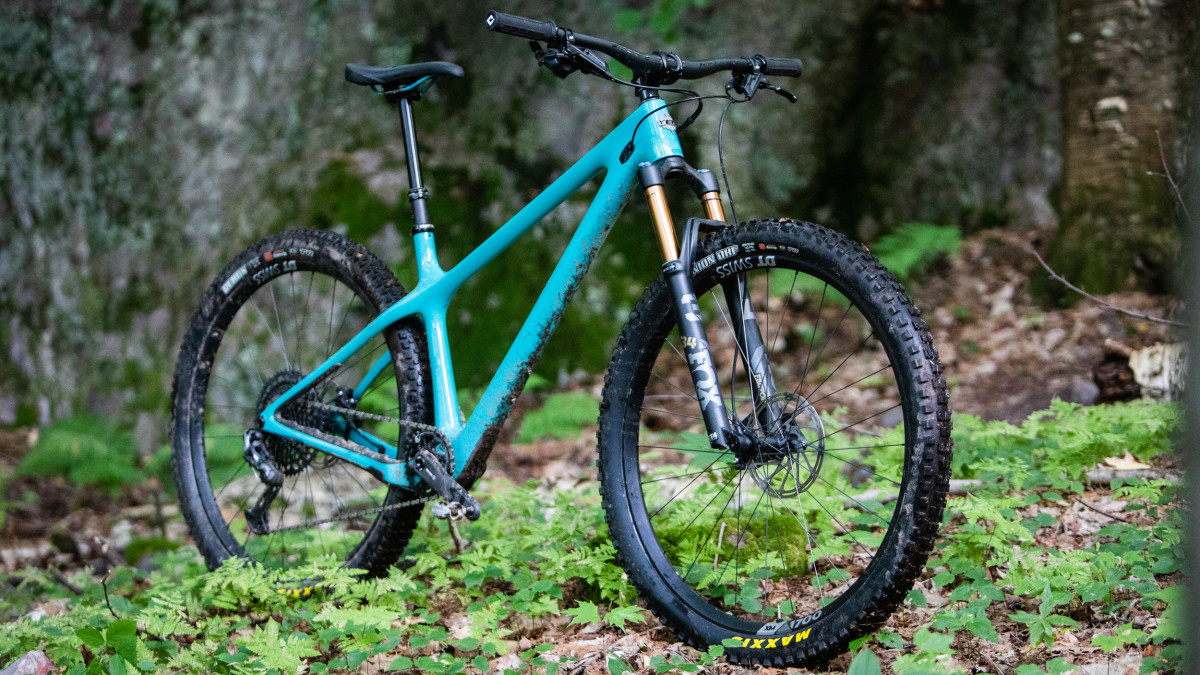

Far beyond a thoroughbred XC race bike, the ARC is built around a 130mm fork for an extremely capable trail bike. It's designed around a modern approach to hardtail geometry, with no loss of rear traction: riders have plenty of room to maneuver. The downtube, seat tube and chainstays interlock for a stiff, direct feel.
Versatile, the ARC will take you to your favorite singletracks, pumptracks and even longer distances in bikepack mode, thanks to its rack mounts.
Main features:
- TURQ Series carbon frame with the C1 kit.
- Shimano SLX 1x12 speed drivetrain.
- Shimano Deore 2-piston hydraulic disc brakes, 180/180 mm
Details:
Frame | Carbon: C1, TURQ Series carbon fiber frame, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger, and axle. |
Fork | Fox Performance 34, 130mm |
Shifter | Shimano SLX, 1x12-speed |
Rear derailleur | Shimano SLX, 12 speed |
Cassette | Shimano SLX, 10-51 Teeth |
Chain | Shimano SLX |
Crankset | Shimano SLX, 32T, 170mm |
Brakes | Shimano Deore 2 piston 180/180mm |
wheels | MACH1 ML30 Torkx 27/20 27C, Sapim CX Ray |
Tires | F: Maxxis Minion DHF 2.6 EXO / R: Maxxis Rekon 2.6 EXO |
Handlebar | Race Face Aeffect R 35X760 mm |
Stem | Race Face Ride 35X50mm |
Grips | Odi Elite Pro |
Saddle | WTB Silverado Custom |

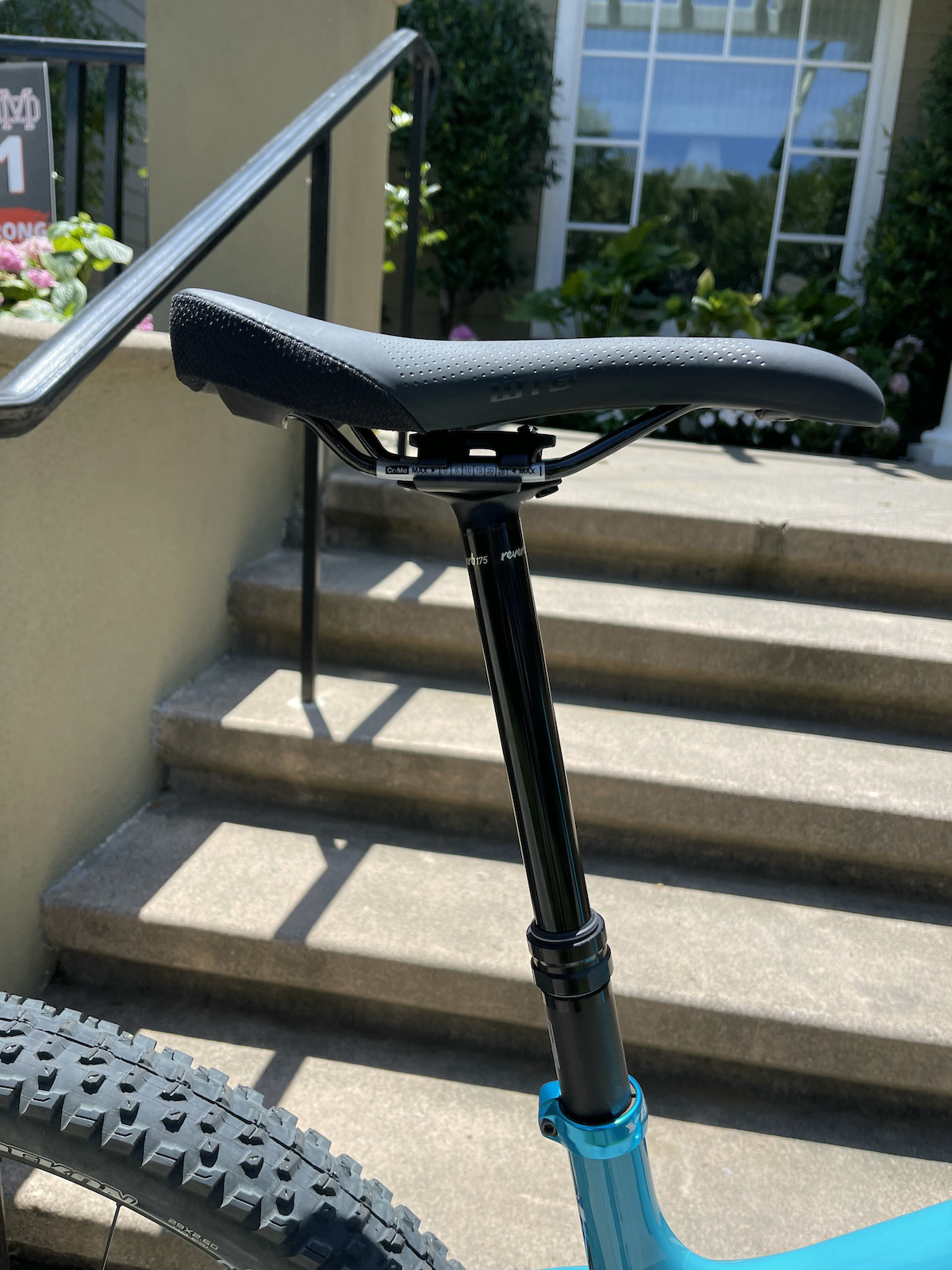

Seatpost | Oneup Dropper Post 31.6mm SM: 180mm, MD/LG/XL: 210mm |
Weight | 11.88kg |
Colors | Dom |

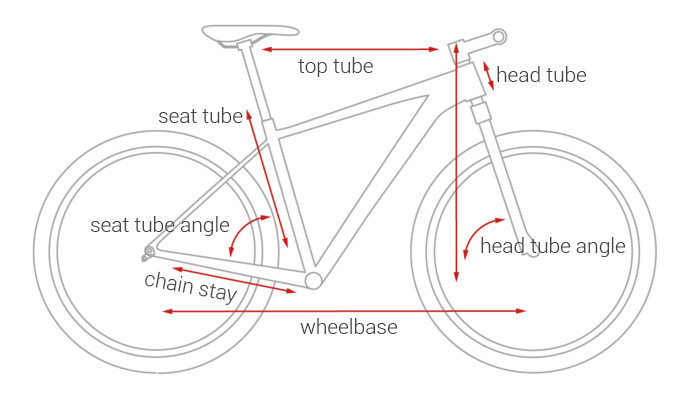

Geometries:

Frame size | S | M | L | XL |
Seat tube (mm) | 380 | 410 | 450 | 495 |
Upper tube (mm) | 577.4 | 604.3 | 626 | 653.4 |
Base length (mm) | 433 | 433 | 433 | 433 |
Head tube (mm) | 95 | 102.9 | 109.6 | 119.6 |
Steering angle (°) | 67 | 67 | 67 | 67 |
Seat tube angle (°) | 76 | 76 | 76 | 76 |
Wheelbase (mm) | 1143.5 | 1171.5 | 1194.2 | 1223.1 |
Stack (mm) | 631.7 | 638.9 | 645.1 | 654.3 |
Reach (mm) | 420 | 445 | 465 | 490 |
